Deck waterproofing is the membrane layer that stops water from passing through an enclosed deck into the framing and rooms below. When it fails, the first signs are usually staining on the ceiling underneath, water that sits on the deck for more than a day after rain, or a surface that feels soft underfoot.
Typical deck waterproofing costs in NZ run from around $1,000–$4,000 for a targeted repair, to $15,000–$50,000 when the membrane and plywood both need replacing. Below are the warning signs, main causes, membrane options, and costs you’ll be looking at for each kind of job.
Waterproof decks are one of the highest-risk parts of an NZ home’s weathertight envelope. BRANZ states that membrane decks over an interior or exterior space carry a high risk of weathertightness failure. That risk rises when solid balustrades enclose the deck and trap water.
MBIE warns that some decks and balconies on leaky homes could be at risk of collapse, with those where water pools among the highest risk. We still see the same failure points on Auckland sites today.
This article is about enclosed decks: a flat, membrane-covered surface over a room, garage, or closed soffit, usually with a solid balustrade. Open timber-slatted decks drain straight through and carry far less risk.
Enclosed decks are nearly flat, walked on daily, and meet walls, doors, and balustrades on several sides. Every junction is a place where water can get behind the membrane.
If you’re asking how to know if your deck membrane has failed, start with what’s happening below the deck, not on top of it. Water can track along joists or behind cladding before it ever stains a ceiling.
These are the deck waterproofing failure signs we check first:
| SIGN | WHAT IT USUALLY MEANS | HOW URGENT |
| Staining, black mould, or bubbling paint on the ceiling | Water is getting past the membrane or a junction | Inspect within weeks |

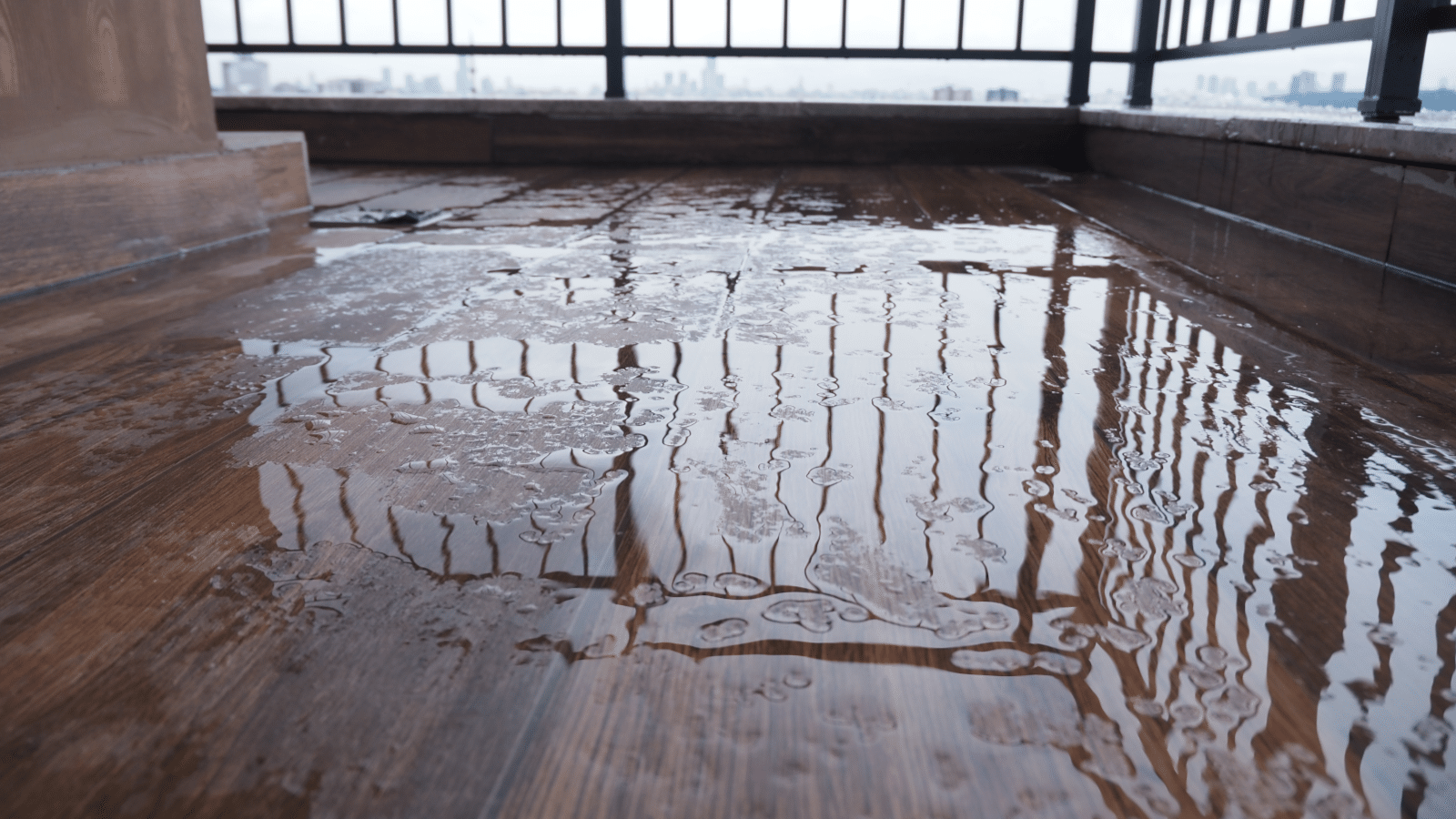

| Water still ponding 24–48 hours after rain | Flat falls, sagging, or blocked outlet | Clear outlets, then inspect |
| Soft or spongy areas underfoot | Wet, possibly decaying plywood | Stay off it and inspect now |
| Bubbles or blisters in the membrane | Trapped moisture or lost adhesion | Inspect before it splits |
| Lifted seams, corners, or upstands | Lap or adhesive failure | Repair promptly |
| Cracked sealant at door sills or balustrade bases | Junction movement letting water behind the cladding | Inspect rather than just reseal |
| Drummy tiles, cracked grout, or efflorescence | Water trapped in the tile bedding | Inspect; tiles may need lifting |
| Musty smell or swollen skirting in the room below | Ongoing moisture in framing or linings | Inspect within weeks |
If a solid balustrade moves when you lean on it, stop using the deck. If your deck is at risk, check it, as hidden rot can weaken its supports.
MBIE’s guide to diagnosing leaky buildings lists the same defects on enclosed decks again and again. At wall junctions, it’s short upstands, poor cladding clearance, and tight door thresholds. On clad balustrades, it’s flat or uncapped tops, handrails fixed through the top, and outlets set too high or not sealed to the membrane.
We most often find the entry point at door thresholds and wall junctions, not the open membrane. Handrail fixings through the tops of solid balustrades are one of the most common reasons we’re called out. And when a leak has shown inside for more than a season, we usually end up replacing at least some of the plywood.
Most deck waterproofing problems come from drainage and detailing, not from the membrane material itself.
E2/AS1 sets a minimum fall of 1.5° (1:40) for membrane decks, but BRANZ recommends 3° to account for sagging and construction tolerances. We’ve seen decks built to the 1.5° minimum that pond anyway. Decks enclosed by walls or balustrades also need an overflow, so one blocked outlet can’t flood the deck.
BRANZ guidance calls for at least 100mm between the interior floor and the highest point of the deck membrane. The membrane should also turn up at least 150mm behind wall and balustrade cladding.
E2/AS1 states that no fixings shall penetrate the underlying deck membrane. BRANZ recommends fixing handrails through the vertical face of a solid balustrade, because fixings through the top have caused significant failures.
The E2/AS1 pathway assumes a plywood substrate at least 17mm thick. Decks over 40m² need roof vents installed to the membrane manufacturer’s instructions. Damp plywood under a new membrane causes blistering and rot.
Tiles laid directly onto a membrane fall outside E2/AS1 and need a specifically appraised under-tile system. Coating over a failed membrane is another common mistake. It hides the leak for a season while the substrate keeps decaying.
The right choice among deck waterproofing membrane options depends on what sits on top of the deck. Under the E2/AS1 fourth edition, only butyl rubber and EPDM are covered. Every other system needs its own BRANZ appraisal or CodeMark, and its substrate, fall, and size limits must be followed exactly.
| MEMBRANE | BEST DECK USE | WALK ON IT DIRECTLY? | COMPLIANCE PATHWAY |
| Butyl and EPDM sheet (e.g. Viking Butylclad, Viking Epiclad, Ardex Butynol) | Under timber on pedestals, pavers, or duckboards | Yes; a removable deck surface adds protection | E2/AS1 (min 1.5mm, over 17mm ply) |
| TPO sheet | Exposed and roof decks needing welded seams | With a protection layer | BRANZ appraisal or CodeMark |
| Liquid-applied under-tile (e.g. Ardex systems) | Tiled decks over ply, fibre cement, or concrete | Tiles form the wearing surface | BRANZ appraisal; many limited to 40m² |
| Trafficable vinyl sheet | Everyday exposed decks needing a finished surface | Yes | BRANZ appraisal; care with hot works |
| Torch-on bitumen | Concrete decks and larger commercial areas | Cap sheet handles light traffic | BRANZ appraisal; care with hot works |
So, how much does deck waterproofing cost in NZ? It ranges from around $500–$3,000 for a targeted deck leak repair to $5,000–$50,000+ when you need to replace both the membrane and plywood. Dry ply makes it a quick job; rotten ply means stripping back to the framing.
| JOB | WHAT’S INVOLVED | TYPICAL COST |
| Inspection and moisture testing | Visual check and moisture readings | $300–$1000 |
| Targeted deck leak repair | Fixing one junction, outlet, or seam | $500–$3000 |
| Membrane replacement on a sound substrate | New membrane over existing ply | $170–$400 per m², plus detailing |
| Membrane and substrate replacement | New ply, corrected falls, new membrane | $5000–$50,000 |
| Full remediation | Framing, balustrade, and cladding repairs, consent | $40,000+ |
Per-square-metre rates mislead on small decks, because a 12m² deck has almost as many upstands, outlets, and door junctions as a 30m² one. The real drivers of deck waterproofing costs in NZ are plywood condition, lifting tiles or decking, balustrade and cladding work, access, and consent. That’s why a quote without an inspection is only a guess.
Deck leak repair works when the membrane is sound, the ply is dry, and the leak traces back to one detail. If the deck waterproofing failure signs above show up in several places, the membrane is brittle, or earlier patches have failed, replacement is the better call.
We don’t coat old failed membrane without checking the substrate first.
Salt does most of its damage to the metal on a deck, not the membrane. Double-layer torch-on and TPO membranes all handle salt spray well, and EPDM also has strong UV resistance. The bigger decisions are stainless steel fixings, marine-rated flashings, and balustrade hardware.
Often, yes. Black staining on a ceiling below a deck is usually mould growing on linings that have been damp for weeks or months. Condensation can also cause it, so moisture readings confirm the source.
Shallow puddles that dry within a few hours are common. Water sitting 24 to 48 hours after rain isn’t normal. If you’re wondering why your deck is pooling water, it’s usually because the falls are too flat, the substrate has sagged, or an outlet is blocked. Ponding ages the membrane faster, so fix it before it leaks.
A soft or spongy deck usually means the plywood beneath the membrane is wet and starting to decay, even if the membrane looks fine. Soft spots almost always mean the substrate needs replacing, not just the membrane.
Bubbles form when moisture or vapour is trapped under the membrane, or when the adhesive loses its bond. Common causes are plywood that was damp during installation, water entering a lap or upstand, and poor surface preparation. Growing or multiple blisters call for an inspection.
No membrane has a guaranteed lifespan. BRANZ appraisals assess deck membranes against the Building Code’s 15-year minimum durability requirement, and well-installed butyl, torch-on, and TPO systems commonly outlast it. Falls, detailing, and a protection layer affect lifespan more than the product.
If your deck shows any of the above signs, the sooner you address it, the less you’ll need to replace. Complete Waterproofing is a licensed waterproofing specialist in Auckland with certified installers for Viking Roofspec and Ardex systems.
We handle everything from targeted deck leak repair to full membrane and substrate replacement, with LBP records of work for council sign-off. Book an inspection, and we’ll tell you whether it needs a repair or a rebuild.
